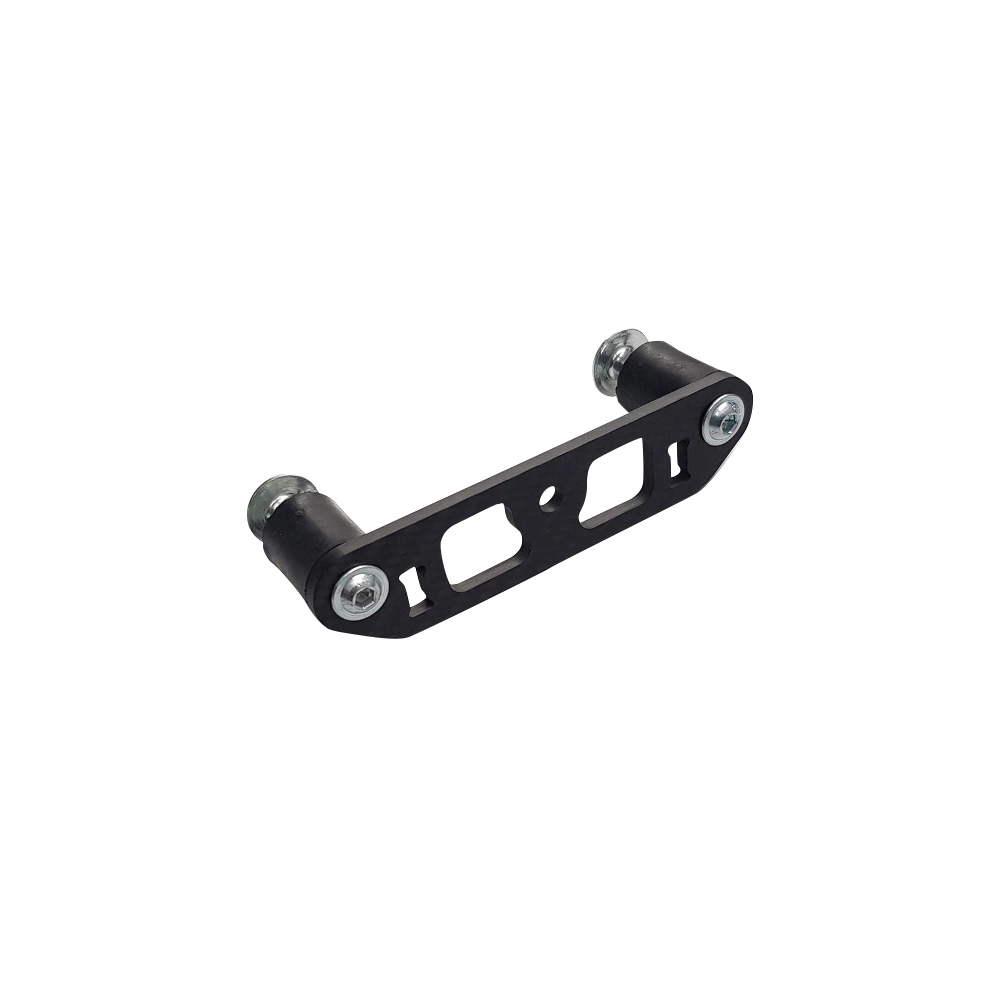

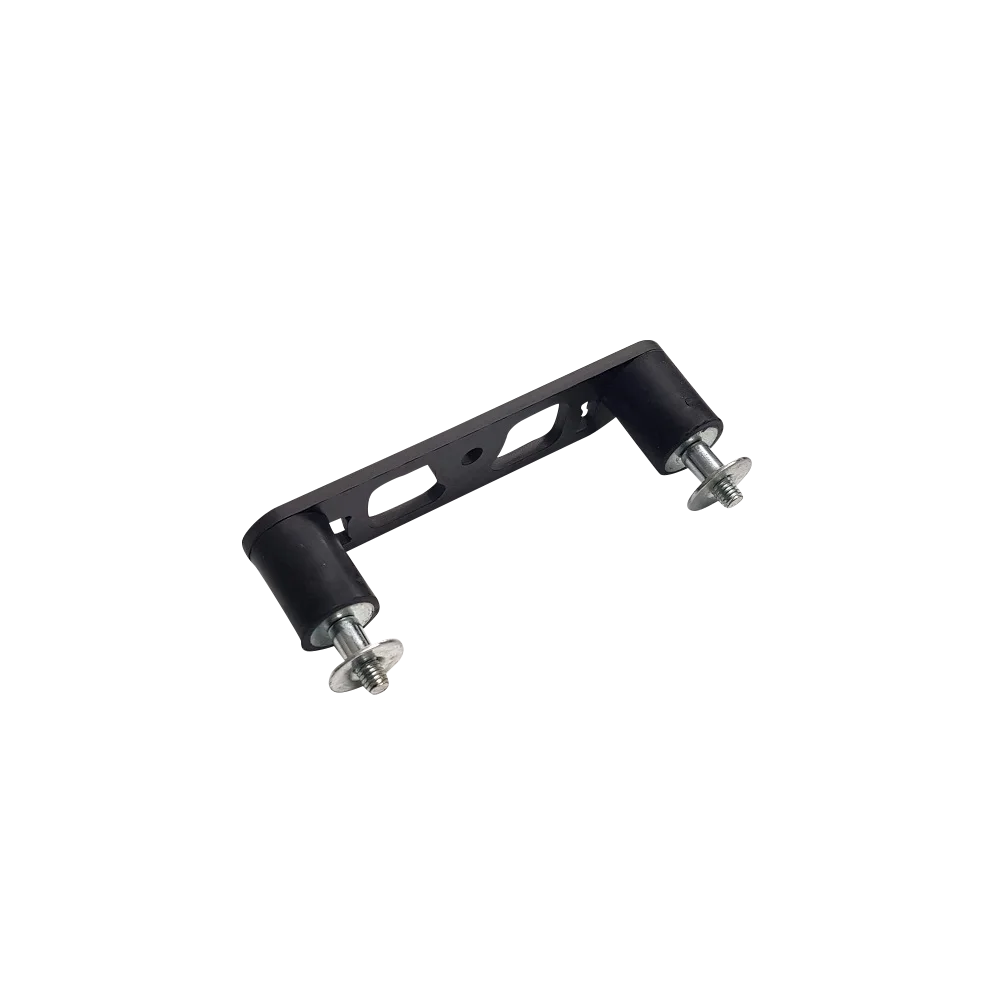

The trolleys can be equipped with an anti-vibration rubber mount. This consists of 2 anti-vibration mounts with M6 stud bolts and M6 internal threads. The bearings are screwed to a CFRP mount, which is then attached to the rear part of the chassis. The M6 studs of the bearings are then bolted to the rear bulkhead.
This type of cushioning is ideal for cushioning the first impact of landing. Otherwise, only the rubber of the tire remains as a dampening element.
This version with two vibration rubber bearings is intended for models up to 20 kg.
Scope of delivery:
2 x anti-vibration rubber mounts, diameter 20 mm, length 25 mm
CFRP mount with a thickness of 4.0 mm to match the chassis
2 x M6 screws for screwing to the mount
Weight: 67 grams
The two flanges at the front of the chassis, which are required to make the chassis moveable at the front, are already included in the scope of delivery.
