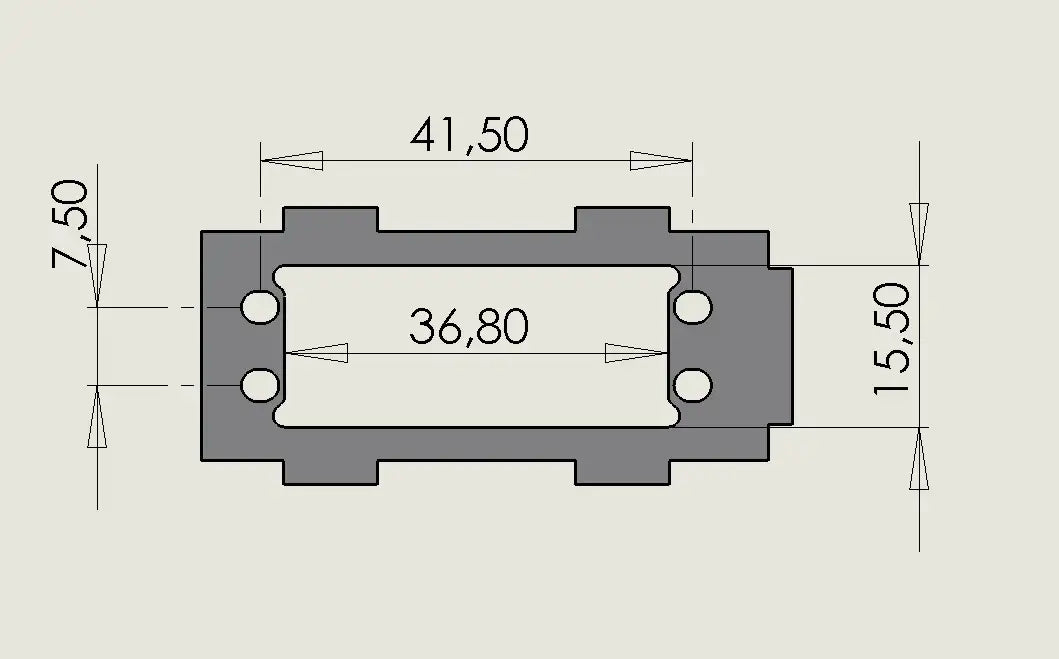

The cable linkage is designed for a 15 mm servo and can be screwed to the rear bulkhead. Three M3 screws are included for this purpose, which are screwed through the bulkhead into the countersunk nuts of the mounting plate.

A central cylinder-head screw (M3) allows the swivel unit with the servo to be tilted forward or backward. This makes it very easy to tighten or loosen the cables leading to the rudder. The annoying and fiddly adjustment using solder sleeves and clevises is eliminated. Once the cables have been correctly installed, you can react to cables that are too loose or too tight in seconds.

The bracket can be mounted completely hidden behind the bulkhead.

A spring holds the pivoting unit under tension, preventing the cylinder head screw from loosening or moving. This ensures the adjustment is maintained.

The adjustment range is 10 mm, so when the swivel unit is in the neutral position, it can be adjusted 5 mm forward and 5 mm backward. This can be influenced by adjusting the cables.

TECHNOLOGY:

• made of 2.5 mm GRP in black

• nested and glued
• extremely stable construction
• Adjustment range 10 mm total
• 3 M3 countersunk nuts for screwing to the bulkhead
• incl. spring and cylinder head screw M4 for adjusting the travel
• incl. 4 x M3 screws and lock nuts for the servo
• Weight of the unit 36.5 grams
