In order to make the installation of our landing gear as easy as possible, we offer a frame set.

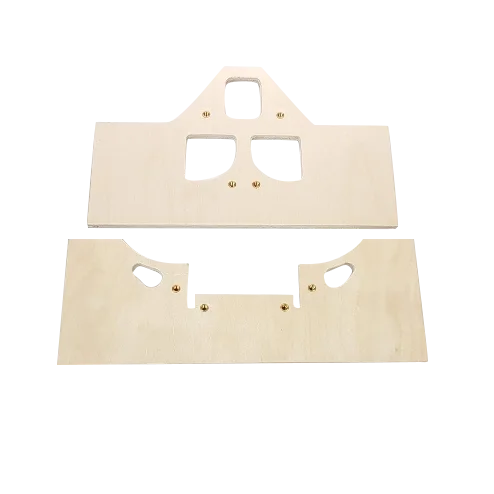

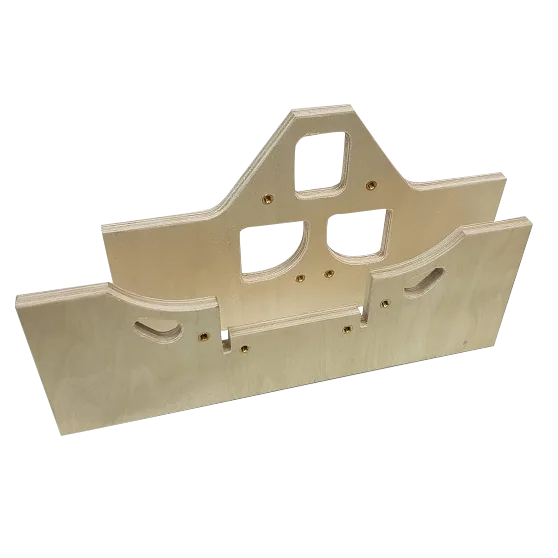

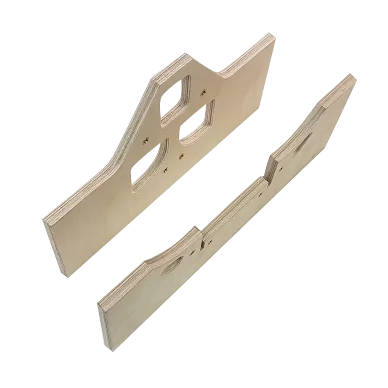

This consists of the main frame at the front and the rear frame.

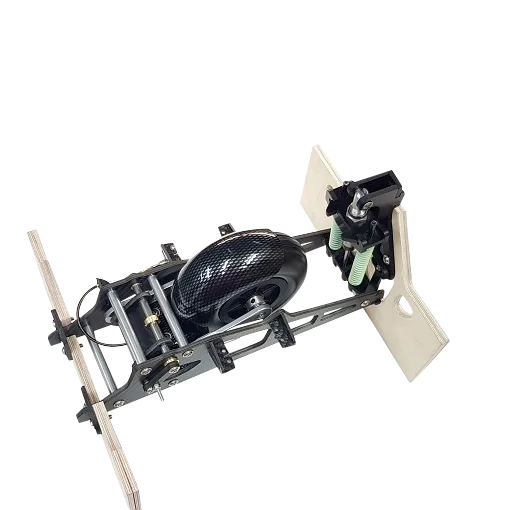

The main frame consists of beech multiplex 8.0 mm, glued several times. This already has the right geometry to accommodate our chassis with the flange plates. With these flange plates, the undercarriage can be moved within the frame, so that either anti-vibration rubber mounts or our shock absorber can be used at the rear. Four M4 brass inserts are already hammered into the bulkhead, and the associated screws are supplied with the landing gear.
The rear frame consists of beech multiplex 8.0 mm, glued several times. The matching brass drive-in nuts are hammered into M4 there. The geometry then fits our rear shock absorber.
Technical features:
the frames have sufficient material on the sides and bottom to form the actual fuselage geometry
